Mismo
look, definición y color que los renombrados Cooke S4.
Opción de cambiar elemento
frontal por otro uncoated para lograr flares más acentuados y bordes más suaves.
Máxima calidad a un precio razonable. Estos lentes son usados en largometrajes y comerciales del más alto nivel internacional.

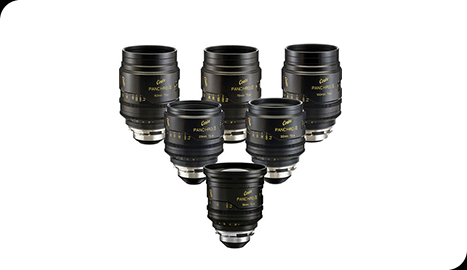

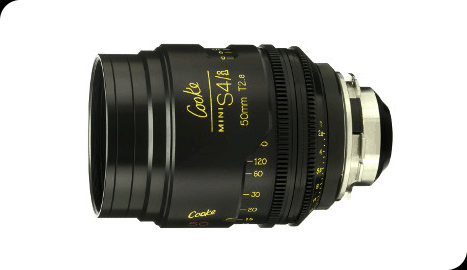

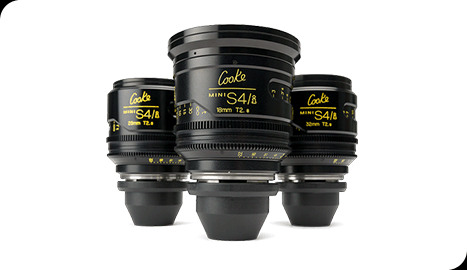

18mm T/2.825mm T/2.850mm T/2.875mm T/2.8100mm T/2.8
|
Coverage
|
33.54mm diameter maximum (Red EPIC 35mm format)
|
|
Aperture
|
T2.8-22
|
|
Iris Type
|
Manual, with two opposing linear T scales – whole
and third stops marked
|
|
Focus Type
|
Manual, with two opposing focus scales – metric
and footage marked from infinity to M.O.D.
|
|
Drive Gear
|
Iris: 119 teeth, 0.8 metric module x 2.5 wide x
84 from image plane
Focus: 121 teeth, 0.8 metric module x 5.0 wide x 104 from image plane
|
|
Rotation
|
Iris Scale: 77°
Focus Range: 300°
|
|
Angle of View
|
Maximum for Super 35:
18mm: 80°
25mm: 62°
32mm: 50°
50mm: 34°
75mm: 22°
100mm: 17°
|
|
Minimum Object Distance (M.O.D.)
|
Marked:
18mm: 10" (25.0 cm)
25mm: 10" (25.0 cm)
32mm: 12" (30.0 cm)
50mm: 20" (50.0 cm)
75mm: 30" (75.0 cm)
100mm: 36" (90.0 cm)
Close
Focus from Lens Front:
18mm: 3" (8.0 cm)
25mm: 4" (9.3 cm)
32mm: 5" (13.9 cm)
50mm: 12" (31.1 cm)
75mm: 22" (56.4 cm)
100mm: 28" (71.1 cm)
|
